Huilv focuses on the R&D, manufacturing, and sales of aluminum profiles, Huiyun 3-HR65 Series Chinese-style Door suppliers in China, and is committed to becoming an expert in curtain wall, door, and window optimization. The factory covers a total area of 201,333 square meters, with a building area exceeding 130,000 square meters. As Huiyun 3-HR65 Series Chinese-style Door factory. It features multiple modern production workshops, including melting and casting, extrusion, spraying, oxidation, digital door and window systems, and intelligent processing, as well as finished product warehouses and a professional design and R&D center.
The company serves both domestic and international markets. Supply Wholesale Huiyun 3-HR65 Series Chinese-style Door. By participating in global exhibitions such as the Canton Fair, it continues to expand its overseas presence, with products exported to major countries and regions worldwide. It has been recognized as a national high-tech enterprise and a “Little Giant” enterprise for specialization, refinement, and innovation.

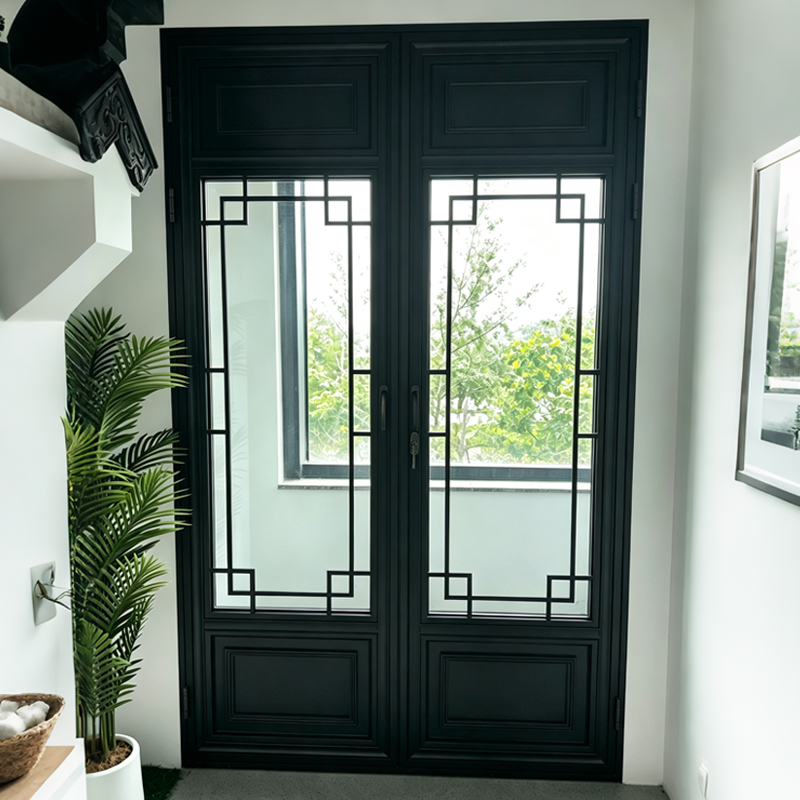

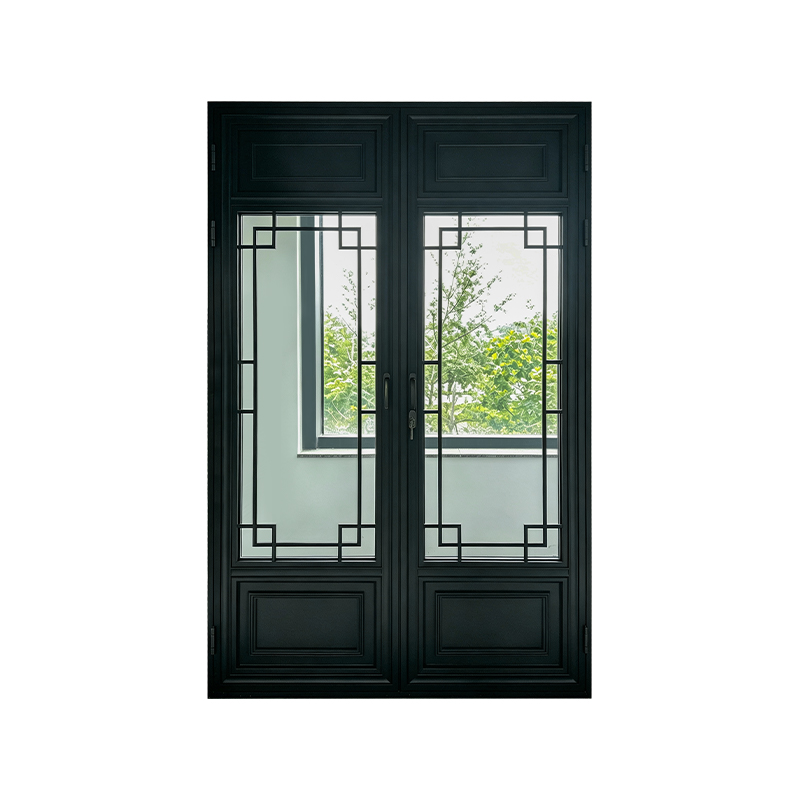

The Huiyun 3-HR65 series Chinese-style door belongs to Huilv's antique-style door and window product line, designed for projects that call for architectural harmony with a distinctly Chinese aesthetic theme. Beyond its role in expressing cultural and stylistic identity, the series carries forward Huilv's structural standards for waterproofing and durability, combining traditional visual character with modern door engineering.

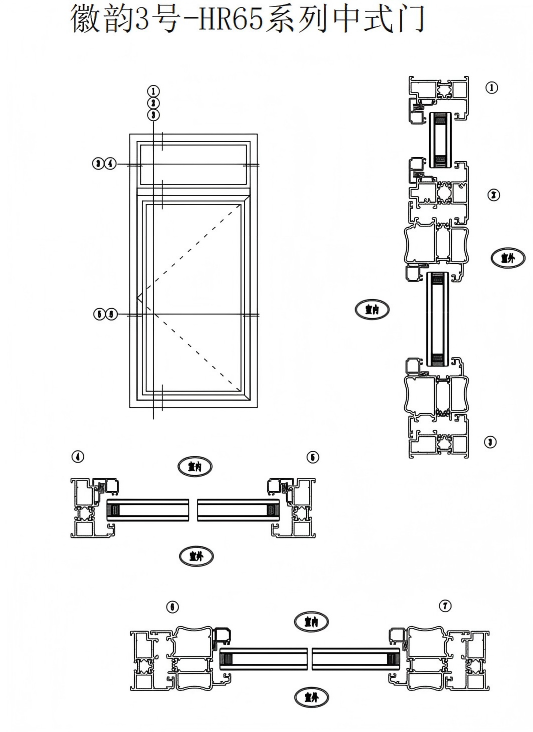

In terms of core dimensions, the visible interior frame width is 51mm — a wider visible frame that reinforces the weighty, well-proportioned character typical of Chinese-style doors and aligns with the façade proportions expected in antique-style architecture. The overall profile width is 65mm for the frame and 70mm for the sash, with the sash slightly wider than the frame to ensure structural strength while leaving sufficient profile depth for decorative or traditional-pattern surface treatments.
The aluminum is produced to a 2.0mm wall thickness, higher than standard door and window series, giving the door added structural robustness that better matches the traditional expectation of substantial mass and load-bearing presence in a Chinese-style door. The raw material is Huilv's own 6063-T5 virgin aluminum alloy, offering the strength and workability needed to achieve precise antique-style profile detailing. Thermal breaks use branded PA66-GF25 strips, preserving the door's traditional appearance without compromising thermal insulation performance. Surface finishing is available in powder coating or fluorocarbon spray painting, with a range of color options that support traditional architectural color schemes such as wood-grain or antique bronze finishes.
The opening configuration features an inward-opening glass sash, in keeping with the conventional usage patterns associated with traditional Chinese door design, while also simplifying day-to-day maintenance and cleaning. Hardware is fitted with Chinese-brand components as standard, adjustable to other specifications to accommodate the customized hardware styling often required for antique-style doors. The glazing package includes 6mm Low-E glass, a 12mm argon-filled cavity, and 6mm tempered glass, delivering thermal insulation, sound reduction, and safety performance — ensuring that even a door built around traditional aesthetics meets modern functional standards. The insulating glass spacer uses a one-piece bent black aluminum bar filled with molecular sieve desiccant to reduce fogging and condensation, with specifications adjustable per project.
On the sealing and structural side, the series is fitted with EPDM rubber gasket seals and a flush isothermal line design, achieving reliable airtightness and watertightness without disrupting the door's antique-style visual integrity — a key contributor to its waterproofing performance. Corner assembly uses expansion-type high-strength aluminum corner keys paired with stainless steel reinforcement plates, with sealant application and two-component injection sealing, ensuring durable, long-lasting corner connections that resist loosening or deformation over time — consistent with the series' emphasis on durability. The drainage system uses a concealed structure that maintains smooth water evacuation while preserving the door's traditional exterior appearance, and all four corners feature a safety R-corner design for both user safety and refined craftsmanship.
Taken together, the Huiyun 3-HR65 series Chinese-style door combines a 65mm profile system, a reinforced 2.0mm wall thickness, and proven sealing and corner-assembly craftsmanship to bring traditional Chinese architectural aesthetics together with modern door performance standards — delivering both stylistic cohesion with the building's overall theme and dependable long-term waterproofing and durability. It stands as a representative series within Huilv's antique-style door and window line, balancing cultural expression with functional performance.
